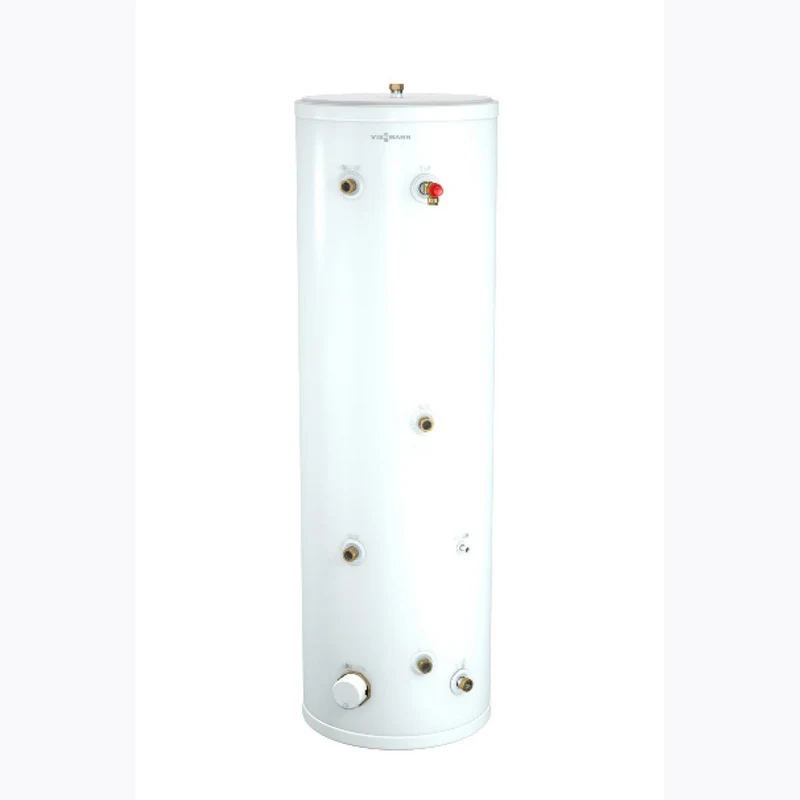

Viessmann Vitocal Heat Pump Cylinder 300 Litre

Viessmann Vitocal Heat Pump Cylinder 300 Litre

The Viessmann Vitocal 300 Litre Heat Pump Cylinder is designed to provide efficient hot water storage for compatible heat pump systems. Built using high-quality materials and supplied with a comprehensive set of unvented components, it offers a practical and reliable solution for modern heating and hot water installations.

High-Performance Cylinder Construction

The cylinder is manufactured from high-grade 1mm thick Duplex stainless steel, providing a robust construction designed for long-term use. Its high-flow, high-gain full-bore coil is designed to support efficient heat transfer, making it well suited to heat pump applications.

Excellent Insulation

The cylinder is fully insulated with 50mm of 100% CFC- and HCFC-free polyurethane. This helps reduce heat loss from the stored hot water and supports efficient system operation.

High-Quality Unvented Components

The Viessmann Vitocal cylinder is supplied with high-quality unvented components to provide the key equipment required for a suitable installation. The package includes an immersion heater and a range of safety and control components. A long-life 3kW Incoloy immersion heater is fitted to the cylinder, providing an additional method of heating the stored water when required.

What's Included

The standard delivery includes the Viessmann Vitocal Heat Pump Cylinder, fitted 3kW immersion heater, fitted 7-bar T&P relief valve, fitted T&P insulation cover and a manual containing the Benchmark Logbook. The supplied unvented safety kit includes a 22mm inlet control valve with 3/6-bar settings, 2-port zone valve, single high-limit thermostat, tundish and 24-litre external expansion vessel.

Warranty and Long-Term Protection

The cylinder is supplied with a 25-year cylinder warranty and a 2-year parts warranty, subject to the applicable manufacturer's terms and conditions. This provides additional reassurance when choosing a cylinder designed for long-term use.

Packaging and Delivery

For transportation, the cylinders are boxed upright and secured with bands on a pallet. A tip-on-tell indicator is positioned on both the front and side faces of the packaging to help monitor handling during transit. Please note that product images are for illustration purposes only and may not be an exact representation of the product supplied.

Key Features and Benefits

• Viessmann Vitocal heat pump cylinder
• 300-litre capacity
• High-flow, high-gain full-bore coil
• Manufactured from high-grade 1mm thick Duplex stainless steel
• 50mm insulation
• 100% CFC- and HCFC-free polyurethane insulation
• High-quality unvented components supplied
• Long-life 3kW Incoloy immersion heater fitted
• 25-year cylinder warranty, subject to applicable terms
• 2-year parts warranty, subject to applicable terms
• 7-bar T&P relief valve fitted
• T&P insulation cover fitted
• 22mm inlet control valve with 3/6-bar settings
• 2-port zone valve
• Single high-limit thermostat
• Tundish
• 24-litre external expansion vessel
• Manual with Benchmark Logbook included
• Supplied boxed upright and banded on a pallet

Frequently Asked Questions

What is the capacity of the Viessmann Vitocal Heat Pump Cylinder?

The Viessmann Vitocal Heat Pump Cylinder has a 300-litre storage capacity, making it suitable for compatible heat pump hot water systems where this level of hot water storage is required.

What immersion heater is included with the cylinder?

A long-life 3kW Incoloy immersion heater is supplied fitted to the cylinder. This provides an additional method of heating the stored hot water when required.

What warranty is included with the Viessmann Vitocal cylinder?

The cylinder comes with a 25-year cylinder warranty and a 2-year parts warranty, subject to the manufacturer's applicable terms and conditions.
