Vaillant Ecolevel Condensate Pump

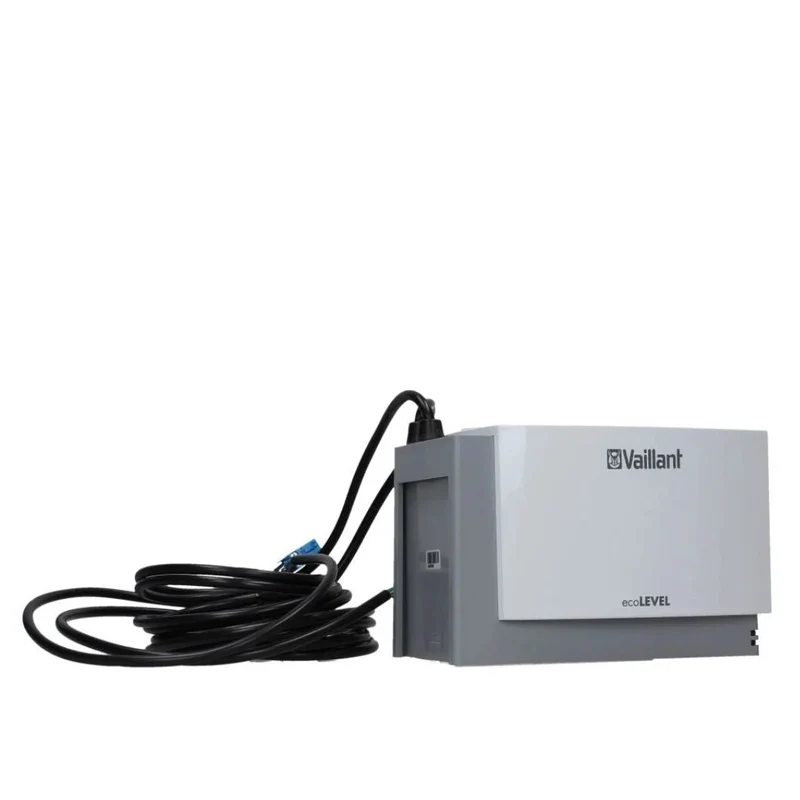

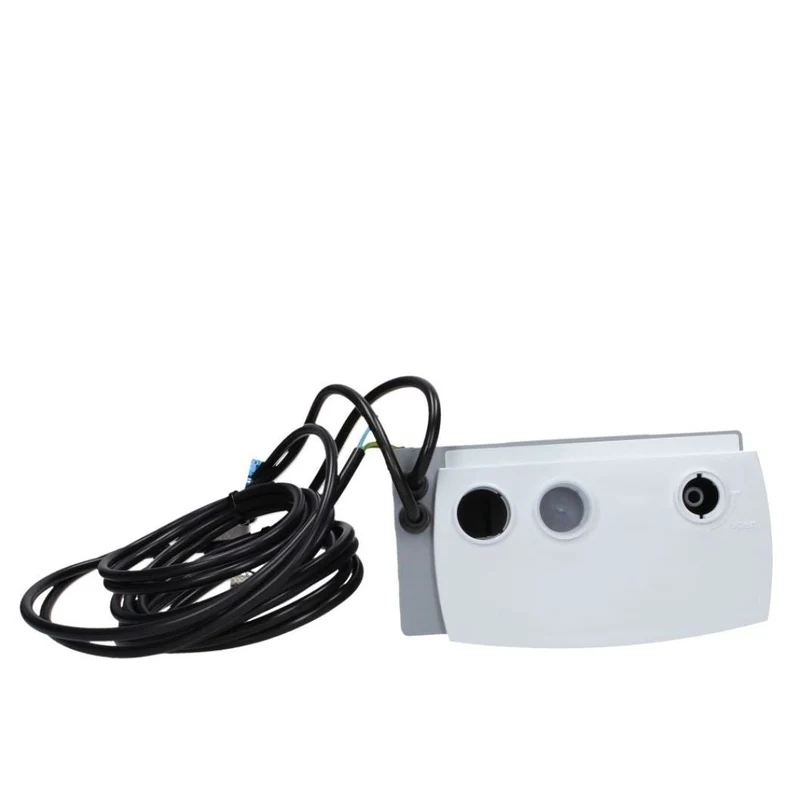

Vaillant ecoLEVEL Condensate Pump

The Vaillant ecoLEVEL condensate pump is designed to safely remove condensate water from a boiler when a gravity drain is not available. This is particularly useful when a high-efficiency condensing boiler is installed in a location such as a basement, loft, or internal cupboard where a suitable drain point is not nearby. The ecoLEVEL pump automatically collects and pumps away the condensate fluid produced by the boiler, helping to ensure safe and reliable operation. Its compact and neat design allows it to be installed discreetly, while its ultra-quiet operation makes it suitable for installation in living areas, cupboards, or utility rooms. This condensate pump comes with LED status indicators, a pre-fitted cable for connection to Vaillant ecoTEC boilers, and built-in safety features including a safety cut-out switch. It is capable of pumping condensate up to 4 metres vertically and up to 150 litres per hour, making it suitable for boilers up to 45kW.

Key Features & Benefits

Pumps Condensate Away When No Gravity Drain Is Available Suitable for Boilers up to 45kW Pumps Up to 150 Litres Per Hour Pumps Up to 4 Metres Vertically Ultra-Quiet Operation Compact and Neat Design LED Status Indicators Pre-Fitted Cable for Vaillant ecoTEC Boilers Built-In Safety Cut-Out Switch IP44 Protection Rating

Key Specifications

Product: Vaillant ecoLEVEL Condensate Pump GTIN: 4024074512067 Product Type: Condensate Pump Gross Weight (Including Packaging): 1.9kg Net Weight: 1.5kg Maximum Pumping Height: 4m Maximum Pumping Capacity: 150 Litres Per Hour Suitable for Boilers: Up to 45kW Water Inlet Temperature: 1°C – 60°C Ambient Temperature: 5°C – 60°C Protection Rating: IP44

When Do You Need a Condensate Pump?

A condensate pump is required when a condensing boiler cannot discharge condensate water by gravity into a drain. The pump collects the condensate and automatically pumps it to a suitable drain point, allowing boilers to be installed in more locations such as basements, lofts, or internal cupboards.

FAQs

What does a condensate pump do?

A condensate pump removes the wastewater produced by a condensing boiler when a gravity drain is not available.

How high can this condensate pump lift water?

This pump can pump condensate water up to 4 metres vertically.

Is this compatible with Vaillant boilers?

Yes, the ecoLEVEL condensate pump is designed for use with Vaillant ecoTEC boilers and comes with a pre-fitted connection cable.
