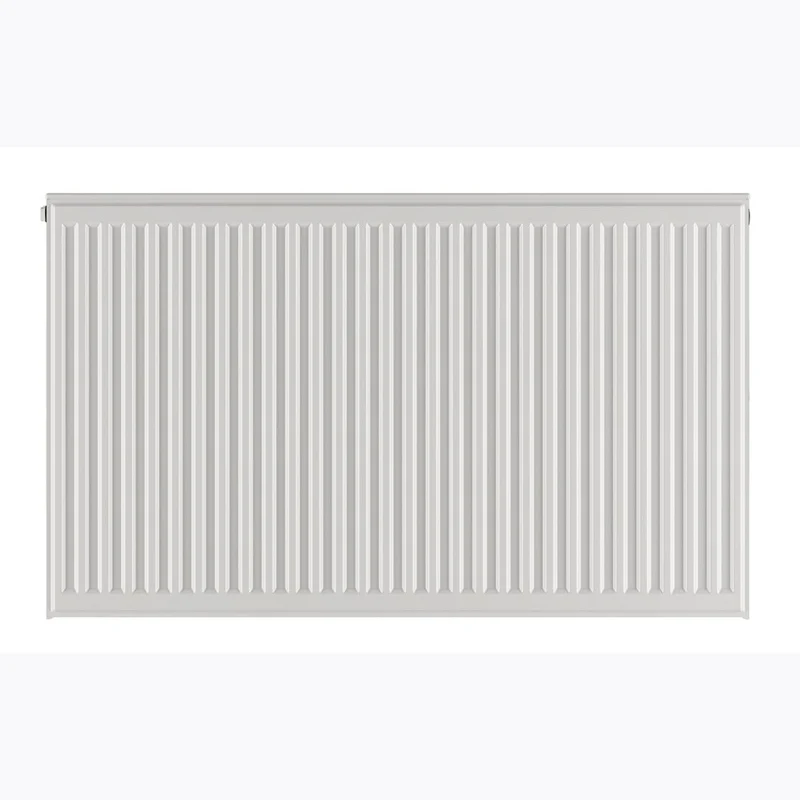

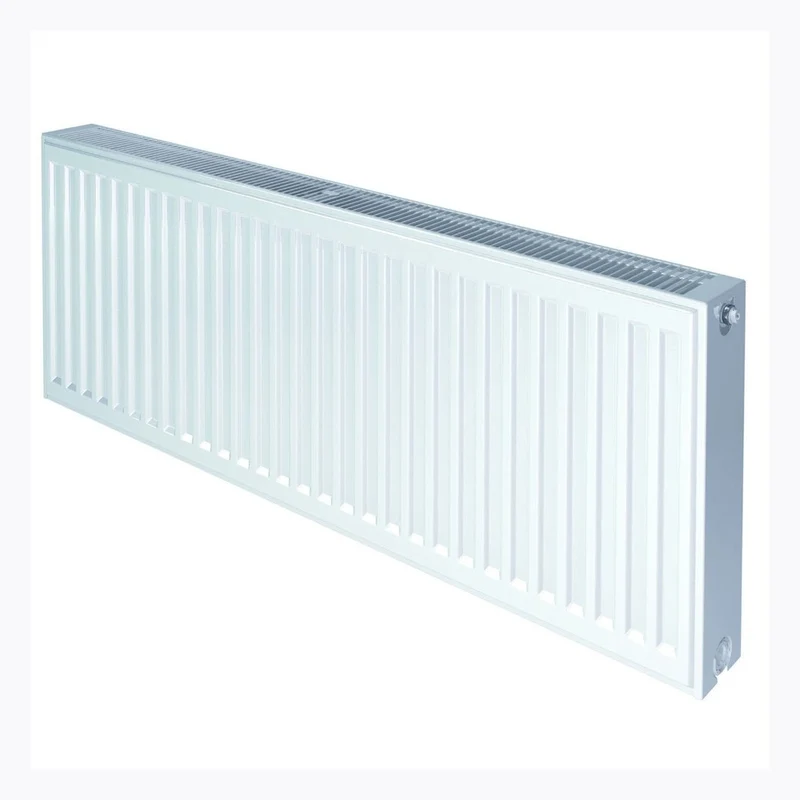

Stelrad Compact K2 Double Panel Radiator

Stelrad Compact K2 Double Panel Radiator

The Stelrad Compact K2 Double Panel Radiator combines reliable heating performance with a clean, practical design, making it suitable for both domestic and commercial central water heating systems. Its compact construction provides excellent sizing flexibility, allowing it to meet a wide range of heating requirements while maintaining a neat appearance. The integrated top grille and side panels are designed to provide a secure, professional fit with minimal movement. This gives the radiator a streamlined look that works well in a variety of interior settings, while its horizontal orientation makes it a practical choice for rooms with suitable wall space.

Efficient Heating Performance

The Stelrad Compact is a Type 22 (K2) radiator featuring a double panel and double convector configuration. The convectors are precision welded directly onto the waterways to improve heat transfer and support efficient, economical heating. Manufactured from durable steel, the radiator is finished with a smooth powder-coated Traffic White finish. The classic white colour provides a clean appearance that can easily complement both contemporary and traditional interiors.

Quality and Durability

Built to recognised industry standards, the Stelrad Compact conforms to BS EN 442 and is manufactured under an ISO 9001 quality system. It is designed to perform at a maximum working pressure of 10 bar (145 psi), providing dependable performance across domestic and commercial applications. The radiator is supplied with wall-mounted fixings and features a 1/2 inch BSP pipe inlet size. It also comes with a 10-year warranty for additional peace of mind. BIM information is available, making the range suitable for projects where Building Information Modelling data is required.

Available Sizes

The Stelrad Compact K2 Double Panel Radiator is available in three different widths, all with a height of 450mm. This range gives you greater flexibility when choosing a radiator to suit your available wall space and desired heat output.

• 450 x 1200mm
• 450 x 1600mm
• 450 x 2000mm

The different widths allow the radiator to accommodate a variety of room sizes and heating requirements. The 450 x 1200mm variant provides a heat output of 5,614 BTU/h, while the wider 450 x 1600mm and 450 x 2000mm options provide increased surface area for applications requiring greater heating capacity.

Key Features

• Type 22 (K2) double panel radiator
• Double convector design
• Available in 450 x 1200mm, 450 x 1600mm and 450 x 2000mm sizes
• Suitable for domestic and commercial central water heating systems
• Horizontal orientation
• Wall-mounted installation
• Manufactured from durable steel
• Precision-welded convectors for efficient heat transfer
• Integrated top grille and side panels for a neat, secure fit
• Maximum operating pressure of 10 bar (145 psi)
• Conforms to BS EN 442
• Manufactured under an ISO 9001 quality system
• BIM available
• 1/2 inch BSP pipe inlet size
• Powder-coated Traffic White finish
• 100mm radiator depth
• 124mm projection from the wall
• Wall-mounted fixings supplied
• 10-year warranty

Frequently Asked Questions

What sizes is the Stelrad Compact K2 Double Panel Radiator available in?

The Stelrad Compact K2 is available in three sizes: 450 x 1200mm, 450 x 1600mm and 450 x 2000mm. All three variants have a height of 450mm, with the different widths providing flexibility for different spaces and heating requirements.

Is the Stelrad Compact K2 suitable for domestic and commercial use?

Yes. The Stelrad Compact K2 Double Panel Radiator is suitable for both domestic and commercial central water heating systems. Its robust steel construction and 10 bar maximum operating pressure make it suitable for a variety of applications.

What type of radiator is the Stelrad Compact K2?

The Stelrad Compact K2 is a Type 22 radiator with a double panel and double convector configuration. This design provides effective heat transfer while maintaining a compact and professional appearance.
