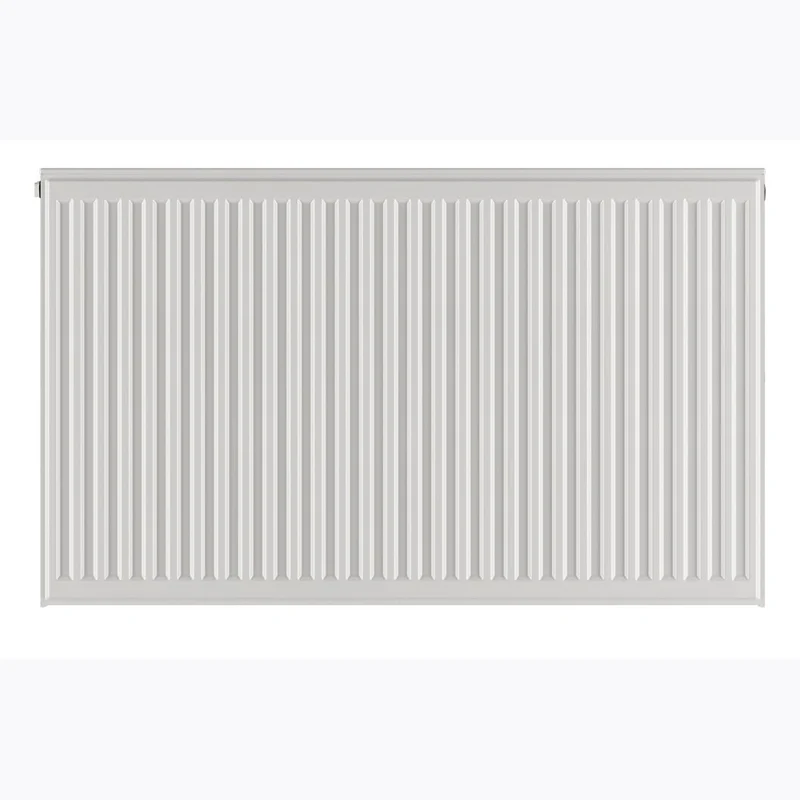

Stelrad Compact K2 Double Panel Horizontal Radiator 700x600mm

Stelrad Compact K2 Double Panel Horizontal Radiator 700 x 600mm

The Stelrad Compact K2 Double Panel Horizontal Radiator 700 x 600mm is a reliable and practical heating solution designed to deliver strong performance while maintaining a clean, compact appearance. Part of Stelrad's popular Compact range, it is suitable for both domestic and commercial central water heating systems and works well in a wide variety of rooms and applications. The radiator features an integrated top grille and side panels that are designed to minimise movement and provide a secure, professional fit. This helps the radiator maintain its neat appearance throughout storage, transportation and installation, making it a practical choice for both new installations and replacement projects.

Efficient Heating Performance

This Type 22 (K2) radiator features a double panel and double convector configuration, providing effective heat transfer and a strong heat output. The convector design helps distribute warmth efficiently while the horizontal format makes it easy to position on suitable wall areas. Manufactured from durable steel, the radiator has a smooth powder-coated Traffic White finish. Its simple, classic appearance allows it to blend easily with a range of interior styles, while its compact construction makes good use of available wall space.

Quality and Durability

The Stelrad Compact K2 is manufactured under an ISO 9001 quality system and meets the BS EN 442 standard. It is designed to perform at a maximum working pressure of 10 bar (145 psi), providing dependable operation when used with compatible central water heating systems. The radiator is supplied with wall-mounted fixings and features a 1/2 inch BSP pipe inlet size. BIM information is also available, which can be useful for building and construction projects requiring digital product information. A 10-year warranty provides additional peace of mind.

Key Features

• Type 22 (K2) double panel radiator
• Double convector design
• 700 x 600mm dimensions
• Suitable for domestic and commercial central water heating systems
• Horizontal orientation
• Wall-mounted installation
• Manufactured from durable steel
• Heat output of 1,177 Watts
• Heat output of 4,017 BTU/h
• 1/2 inch BSP pipe inlet size
• Maximum operating pressure of 10 bar (145 psi)
• Meets BS EN 442 standard
• Manufactured under an ISO 9001 quality system
• BIM available
• Powder-coated Traffic White finish
• 100mm radiator depth
• 112mm projection from the wall
• Wall-mounted fixings
• 10-year warranty

Frequently Asked Questions

What are the dimensions of the Stelrad Compact K2 radiator?

The Stelrad Compact K2 measures 700mm high by 600mm wide, with a radiator depth of 100mm and a projection from the wall of approximately 112mm.

What does Type 22 (K2) mean?

Type 22, also known as K2, refers to a radiator construction with two panels and two convectors. This configuration provides a higher heat output than single-panel radiator types while retaining a practical and compact design.

What is the heat output of the 700 x 600mm radiator?

The Stelrad Compact K2 700 x 600mm radiator has a heat output of 1,177 Watts, equivalent to approximately 4,017 BTU/h. It is designed for use with central water heating systems and has a maximum operating pressure of 10 bar (145 psi).
