Mira Form Exposed Mixer Shower

Mira Form Exposed Mixer Shower

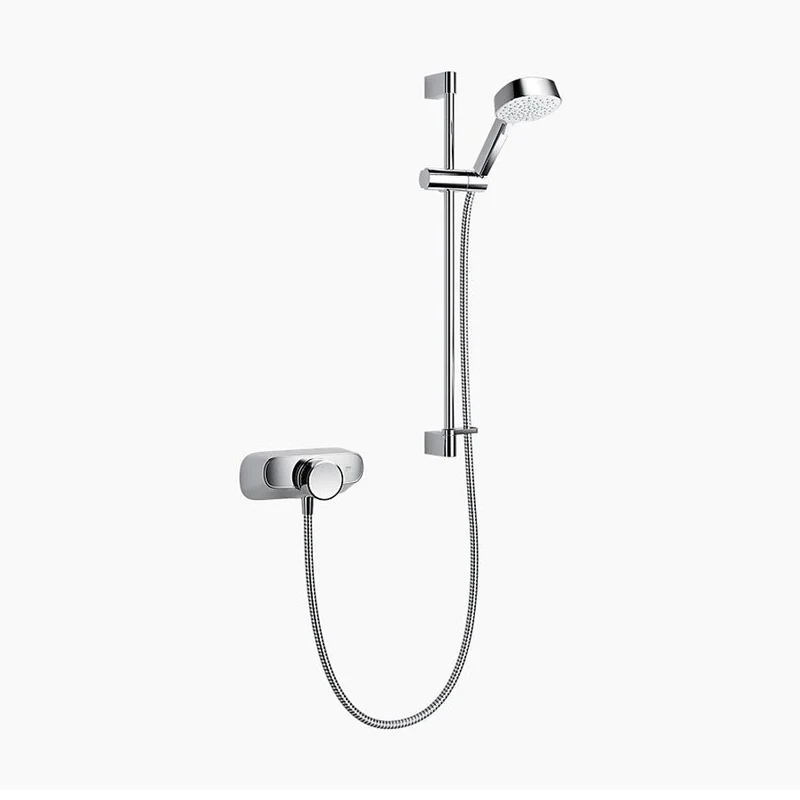

The Mira Form Exposed Mixer Shower is designed to make replacing an existing mixer shower as easy and hassle-free as possible. Its clever Multi-Fit design is built to cover around 95% of concentric mixer showers with pipe centres between 110mm and 153mm, making it a versatile choice for bathroom upgrades and replacement installations.

Designed for Easy Retrofitting

The Mira Form features adjustable inlet connections that allow it to adapt to existing 15mm pipework, helping make replacement installations quicker and more straightforward. The adjustable slide bar brackets can also make use of existing fixing holes, reducing the need for additional drilling and unnecessary mess. Its unique valve shroud neatly conceals existing pipework, connections and previous fixing holes, creating a clean and professional finish. The generous 660mm adjustable riser rail is designed to replace many existing mixer showers while making use of the original fixing points where possible.

Flexible Showering Options

The single-outlet version comes with a generous 660mm adjustable riser rail and a comfortable 11cm showerhead featuring four spray patterns. A convenient push-button allows you to change between spray modes, while rub-clean rubber nozzles make it easier to remove limescale and keep the showerhead performing at its best. For added flexibility, the system can be upgraded to a dual-outlet setup with a telescopic riser rail offering up to 250mm of height adjustment. The swivel-action deluge arm also allows the deluge shower to be positioned exactly where you need it when in use.

Thermostatic Temperature Control

Comfort and safety are at the heart of the Mira Form. Its TMV2-accredited cartridge provides thermostatic temperature stability, helping maintain a consistent shower temperature. A maximum temperature setting also provides an added level of protection, making the shower suitable for comfortable everyday use. The simple single control combines on/off operation with temperature adjustment, keeping the controls easy and intuitive.

Quality Design and Practical Storage

The Mira Form combines a stainless steel backplate with quality chrome fittings for a clean, contemporary appearance designed to complement a wide range of bathroom styles. A useful shelf area on top of the mixer provides convenient space for keeping soap, shampoo and other shower essentials close at hand. The shower also includes a 1.25m anti-twist, easy-clean hose, adding to its practical everyday design.

Easy to Maintain

Maintenance is made simpler with large, long-life filters and a replaceable cartridge. The shower is also suitable for replacement installations using existing olives, compression nuts and pipe concealing plates, helping reduce disruption when upgrading an older mixer shower. The Mira Form is suitable for rear-fed 15mm compression connections, although it is not designed as a replacement for 3/4-inch bar valve installations.

Key Features

Multi-Fit exposed mixer shower designed for easy retrofitting

Suitable for approximately 95% of concentric mixer showers with 110–153mm pipe centres

Adjustable inlet connections for existing 15mm pipework

Adjustable slide bar brackets can reuse existing fixing holes

Unique valve shroud conceals existing pipework, connections and fixing holes

Generous 660mm adjustable riser rail

Can be upgraded to a dual-outlet shower with telescopic riser rail

Up to 250mm height adjustment with the telescopic riser rail

11cm showerhead with four spray patterns

Push-button spray mode change

Rub-clean rubber showerhead nozzles

1.25m anti-twist, easy-clean hose

Swivel-action deluge arm for flexible positioning

TMV2-accredited thermostatic cartridge

Thermostatic temperature stability

Maximum temperature setting for added safety

Single control for on/off and temperature adjustment

Stainless steel backplate with quality chrome fittings

Useful shelf area for soap and shampoo bottles

Large, long-life filters

Replaceable cartridge for easier servicing

Suitable for rear-fed 15mm compression connections

Not suitable for 3/4-inch bar valve replacement

Frequently Asked Questions

What pipe centres does the Mira Form Exposed Mixer Shower fit?

The Mira Form is designed for Multi-Fit installation and can accommodate approximately 95% of concentric mixer showers with pipe centres between 110mm and 153mm. Its adjustable inlet connections help it adapt to existing 15mm pipework.

Can the Mira Form reuse existing fixing holes?

Yes. The adjustable slide bar brackets and generous 660mm riser rail are designed to make use of existing fixing holes where possible. The valve shroud also helps conceal previous fixing holes and pipework for a neat finished appearance.

Does the Mira Form provide thermostatic temperature control?

Yes. The Mira Form features a TMV2-accredited thermostatic cartridge that provides temperature stability during showering. It also includes a maximum temperature setting for additional safety and comfort.
