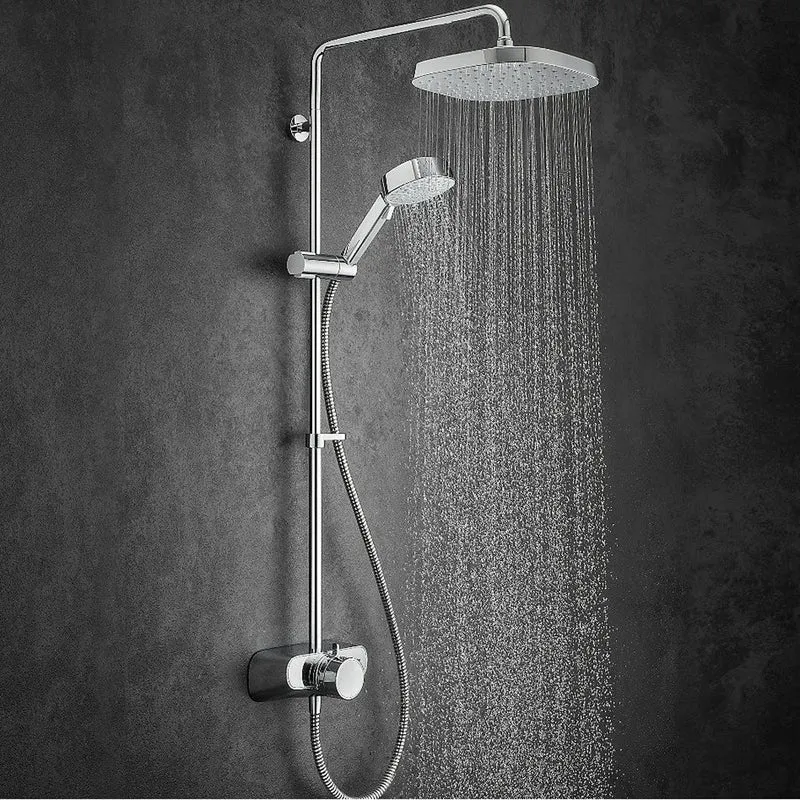

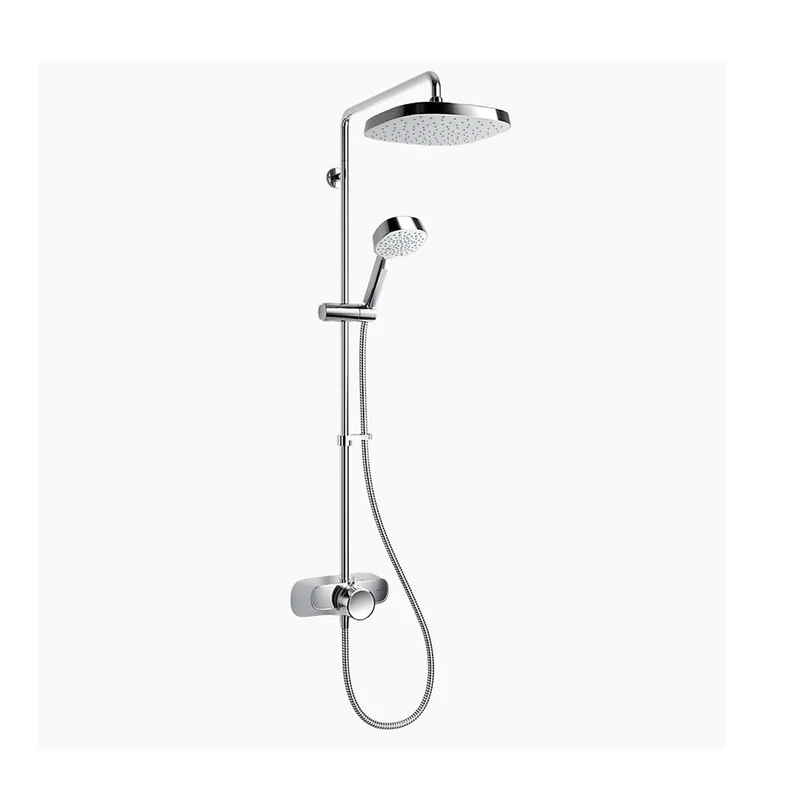

Mira Form Dual Mixer Shower

Mira Form Dual Mixer Shower

Make replacing your existing mixer shower simpler with the Mira Form Dual Mixer Shower. Designed with flexible Multi-Fit features, it can accommodate around 95% of concentric mixer showers with pipe centres between 110mm and 153mm. This makes it an excellent choice for bathroom upgrades where you want to minimise disruption while achieving a clean, modern finish.

Designed for Hassle-Free Retrofitting

The Mira Form features adjustable inlet connections that can adapt to existing 15mm pipework, helping make replacement installations much easier. The adjustable slide bar brackets can also be positioned to reuse existing fixing holes, reducing the need for additional drilling and unnecessary mess. A generous 660mm slide bar provides plenty of flexibility when replacing many existing mixer showers. The clever valve shroud neatly hides previous fixing holes, water entry points and pipework, leaving behind a smart and tidy appearance.

Flexible Dual Showering

The Mira Form Dual gives you the added luxury of an overhead deluge shower alongside the convenient hand shower. Its height-adjustable slider provides up to 200mm of adjustment, making it easier to achieve the right position for your bathroom. The deluge arm can move from left to right, allowing you to centralise the water flow over your showering area even when the slider bar needs to be installed slightly off-centre. This clever design gives you greater freedom when working around an existing bathroom layout.

Comfortable and Safe Showering

Thermostatic temperature control helps keep your shower water at a stable and comfortable temperature, while the maximum temperature setting provides an additional level of safety. A single, easy-to-use control operates both the on/off function and temperature adjustment. The hand shower features four spray patterns, giving you the freedom to choose the spray that suits you. A convenient push-button makes changing modes simple, while the rub-clean rubber nozzles help make removing limescale and everyday build-up easier.

Quality Design and Practical Features

The Mira Form combines a stainless steel backplate with quality chrome fittings for a contemporary appearance that works well with a wide range of bathroom styles. The 1.25m anti-twist, easy-clean hose adds everyday convenience, while the swivel-action deluge arm makes positioning the overhead shower straightforward. Although supplied as a dual-outlet shower, the Mira Form range is designed around flexible installation, with the Multi-Fit system making it easier to upgrade or replace existing shower arrangements.

Easy to Fit and Maintain

The Mira Form is suitable for replacing a previous mixer valve using existing olives, compression nuts and pipe concealing plates. It is also suitable for rear-fed 15mm compression connections, although it is not designed as a replacement for a 3/4-inch bar valve. For ongoing maintenance, the shower features large, long-life filters and a replaceable cartridge, helping to keep servicing straightforward and extending the practical life of the system.

Key Features

Multi-Fit dual mixer shower designed for flexible retrofitting

Suitable for approximately 95% of concentric mixer showers with 110–153mm pipe centres

Adjustable inlet connections for existing 15mm pipework

Adjustable slide bar brackets can reuse existing fixing holes

Generous 660mm slide bar for flexible installation

Height-adjustable telescopic slider for the overhead deluge shower

Up to 200mm of height adjustment for flexible positioning

Left-to-right moving deluge arm helps centralise water flow

Valve shroud conceals existing pipework, connections and fixing holes

Thermostatic temperature stability

Maximum temperature setting for increased safety

Single control for on/off and temperature adjustment

11cm hand shower with four spray patterns

Push-button spray mode change

Rub-clean rubber showerhead nozzles

1.25m anti-twist, easy-clean hose

Stainless steel backplate with quality chrome fittings

Large, long-life filters

Replaceable cartridge for easier servicing

Suitable for rear-fed 15mm compression connections

Suitable for replacement installations using existing olives, compression nuts and pipe concealing plates

Not suitable for 3/4-inch bar valve replacement

Frequently Asked Questions

What pipe centres does the Mira Form Dual Mixer Shower fit?

The Multi-Fit design is suitable for approximately 95% of concentric mixer showers with pipe centres between 110mm and 153mm. Its adjustable inlet connections are designed to work with existing 15mm pipework, providing greater flexibility during replacement installations.

Can the Mira Form Dual use existing fixing holes?

Yes. The adjustable slide bar brackets and 660mm slide bar are designed to help you reuse existing fixing holes where possible. The valve shroud also conceals previous fixing holes, connections and pipework to provide a neat, finished appearance.

Can the overhead deluge shower be adjusted?

Yes. The Mira Form Dual includes a height-adjustable slider for the overhead deluge shower, offering up to 200mm of height adjustment. The deluge arm also moves from left to right, helping you position the water flow centrally even when the slider bar cannot be installed directly in the centre of the shower area.
