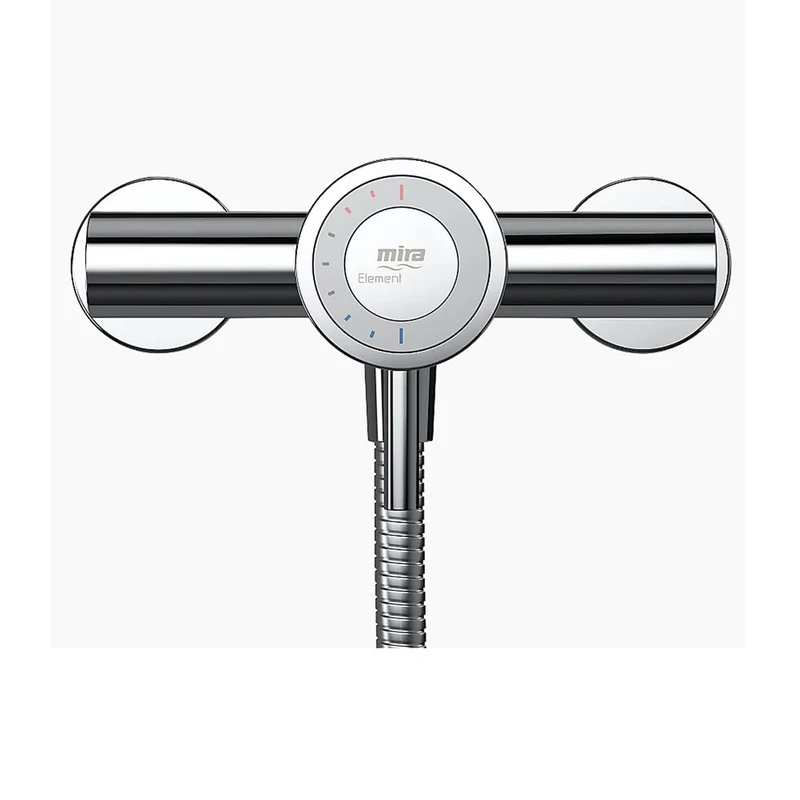

Mira Element Exposed Thermostatic Mixer Shower

Mira Element Exposed Thermostatic Mixer Shower

The Mira Element Exposed Thermostatic Mixer Shower combines a sleek, refined design with simple, practical operation, making it an excellent choice for contemporary and family bathrooms. Its slimline valve helps maximise available showering space, while the single control makes it easy to switch the shower on and adjust the temperature.

Simple Single-Control Operation

Designed with convenience in mind, the Mira Element uses one single control for on/off operation and temperature adjustment. This straightforward design makes the shower easy to operate for the whole family, without unnecessary controls or complicated settings.

Safe and Consistent Showering

Thermostatic temperature control helps maintain a comfortable and consistent shower temperature, providing added reassurance during everyday use. The shower features thermostatic shutdown within 2 seconds and has an adjustable maximum temperature for on-site conditions. It is factory set to a maximum temperature of 41°C for added safety. The Mira Element is also TMV2 approved, helping provide reliable temperature control and comfortable showering when correctly installed and used.

Powerful Performance at Low Pressure

Mira Magni-flo™ technology is designed to deliver up to three times more flow, even at low water pressure. The Mira Element works across a wide range of water systems and pressures, making it a versatile choice for different bathroom installations. It is suitable for cold water temperatures of up to 25°C and hot water temperatures between 60°C and 65°C. The shower operates from a minimum maintained pressure of 0.1 bar (1 metre head), with a maximum maintained pressure of 5.0 bar (50 metre head) and maximum static pressure of 10.0 bar (100 metre head).

Large Four-Spray Showerhead

The shower is supplied with a generous 110mm four-spray showerhead, giving users a choice of spray patterns for a more enjoyable and personalised showering experience. Rub-clean nozzles make it easier to remove limescale and everyday deposits, helping keep the showerhead performing effectively.

Flexible and Straightforward Installation

The Mira Element is designed to simplify installation, with rising, falling or rear water entry options. It uses 15mm compression inlet connections and offers a choice of ½" BSP male flat-face or 15mm compression outlet connections. With 153mm pipe centres, the shower provides a practical installation configuration. Reversed inlet supplies are also supported, with the cartridge able to be rotated inside the valve body to accommodate the pipework. The no-hassle nut and olive installation system makes fitting straightforward, while the refined slimline valve creates a neat finish without taking up unnecessary showering space.

Easy Maintenance and Servicing

Maintenance is made easier with replaceable pull-out filters at the inlets, supported by an integrated filter within the cartridge body. This filtration system helps prevent blockages and supports the long-term performance of the shower. The patented Easy Clip system makes replacing the cartridge simpler and helps reduce the risk of damage during servicing, making routine maintenance more convenient for installers.

Key Features

• Exposed thermostatic mixer shower
• Slimline valve designed to maximise showering space
• Single control for on/off and temperature
• Thermostatic temperature control
• Thermostatic shutdown within 2 seconds
• Factory-set maximum temperature of 41°C
• Adjustable maximum temperature for on-site conditions
• TMV2 approved
• Mira Magni-flo™ technology delivers up to 3x more flow
• Suitable for all systems and pressures, including low pressure
• 110mm four-spray showerhead
• Rub-clean nozzles for easier cleaning
• Rising, falling or rear water entry
• 15mm compression inlet connections
• ½" BSP male flat-face or 15mm compression outlet connections
• Reversed inlet supplies supported
• 153mm pipe centres
• No-hassle nut and olive installation
• Replaceable pull-out inlet filters
• Integrated cartridge filter
• Patented Easy Clip cartridge replacement system
• Minimum maintained pressure: 0.1 bar (1 metre head)
• Maximum maintained pressure: 5.0 bar (50 metre head)
• Maximum static pressure: 10.0 bar (100 metre head)

Frequently Asked Questions

Is the Mira Element suitable for low water pressure?

Yes. The Mira Element features Mira Magni-flo™ technology, which is designed to deliver up to three times more flow, even at low water pressure. It is suitable for a wide range of water systems and pressures.

What temperature safety features does the Mira Element have?

The shower features thermostatic temperature control, thermostatic shutdown within 2 seconds and an adjustable maximum temperature. It is factory set to 41°C and is also TMV2 approved for reliable temperature management.

Can the Mira Element be installed with reversed hot and cold supplies?

Yes. Reversed inlet supplies are supported. The cartridge can be rotated inside the valve body to accommodate reversed pipework, providing additional flexibility when replacing or upgrading an existing mixer shower.
