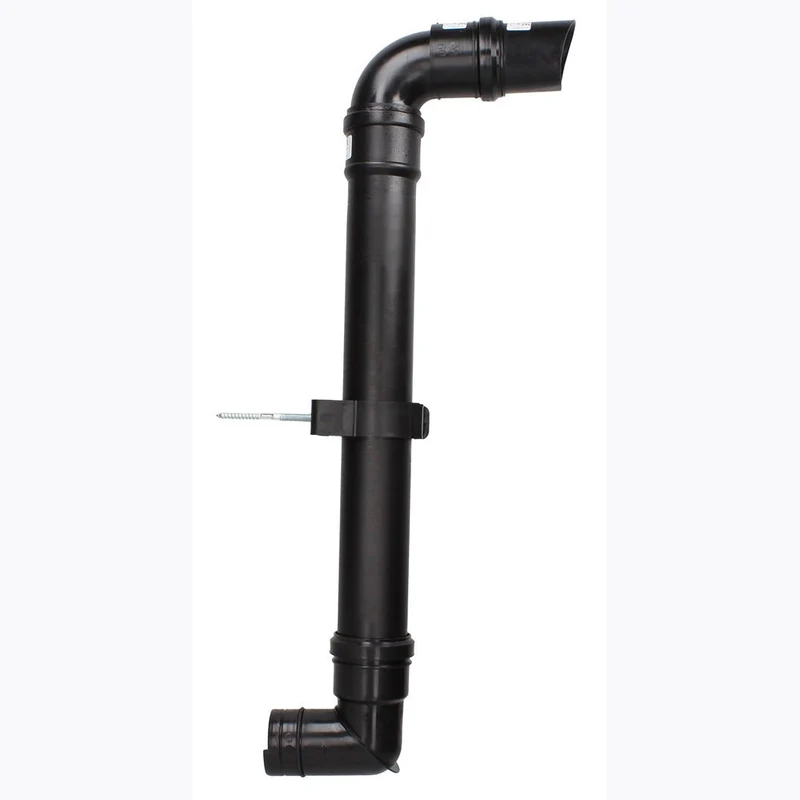

Ideal Logic Combi/System High Level Flue Outlet Kit

Ideal Logic Combi/System High Level Flue Outlet Kit

The Ideal Logic Combi/System High Level Flue Outlet Kit is designed to provide a practical solution for managing boiler flue plume on compatible Ideal Logic and Vogue boiler installations. It allows the plume to be redirected away from nearby windows, alleyways or neighbouring properties, helping position the discharge point in a more suitable location. This kit is particularly useful where the standard flue outlet position could result in plume being discharged too close to areas used by people or near neighbouring buildings. With the included flue components, the system provides greater flexibility when creating a high-level flue route.

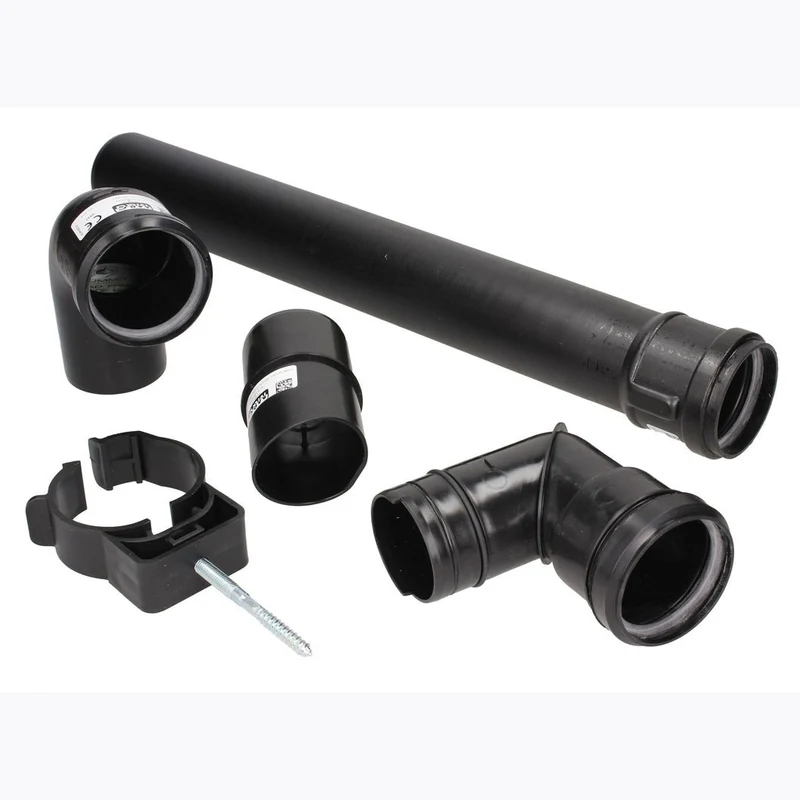

Kit Contents

The Ideal High Level Flue Outlet Kit includes all of the following components:

• 1 x Flue elbow
• 1 x 60mm flue exit elbow
• 1 x 60mm horizontal flue exit
• 1 x 60mm x 500mm flue outlet
• 1 x Extension pipe
• 1 x Set of installation instructions

Effective Flue Plume Management

The high-level configuration helps redirect harmful boiler flue gases away from windows, alleyways and neighbouring properties where the standard flue arrangement may not be suitable. This provides installers with additional flexibility when planning the route and discharge position of the flue. The kit combines several flue components to create a practical high-level outlet arrangement. The final positioning must take account of the boiler manufacturer's requirements, permitted clearances and applicable regulations.

Compatibility and Installation

This high-level flue outlet kit is designed for compatible Ideal Logic and Vogue boiler models. Before purchasing, the exact boiler model and existing flue configuration should be checked to confirm compatibility. Flue and plume components are safety-critical and must be installed in accordance with the manufacturer's instructions by a suitably qualified heating professional. Correct terminal positioning and required clearances should always be maintained.

Available Variants

This is a boiler flue accessory, so door-specific variants such as door sizes, finishes, colours, glazing options and handing are not applicable. No additional variants were provided in the supplied Excel information.

Frequently Asked Questions

What is the Ideal High Level Flue Outlet Kit used for?

The kit is used to create a high-level flue outlet arrangement that can help divert boiler plume away from windows, alleyways and neighbouring properties where required.

What components are included in the kit?

The kit includes a flue elbow, 60mm flue exit elbow, 60mm horizontal flue exit, 60mm x 500mm flue outlet, extension pipe and installation instructions.

Which boilers is this high-level flue kit suitable for?

It is designed for compatible Ideal Logic and Vogue boiler models. Always check the exact boiler model and manufacturer's flue requirements before purchasing and installation.
