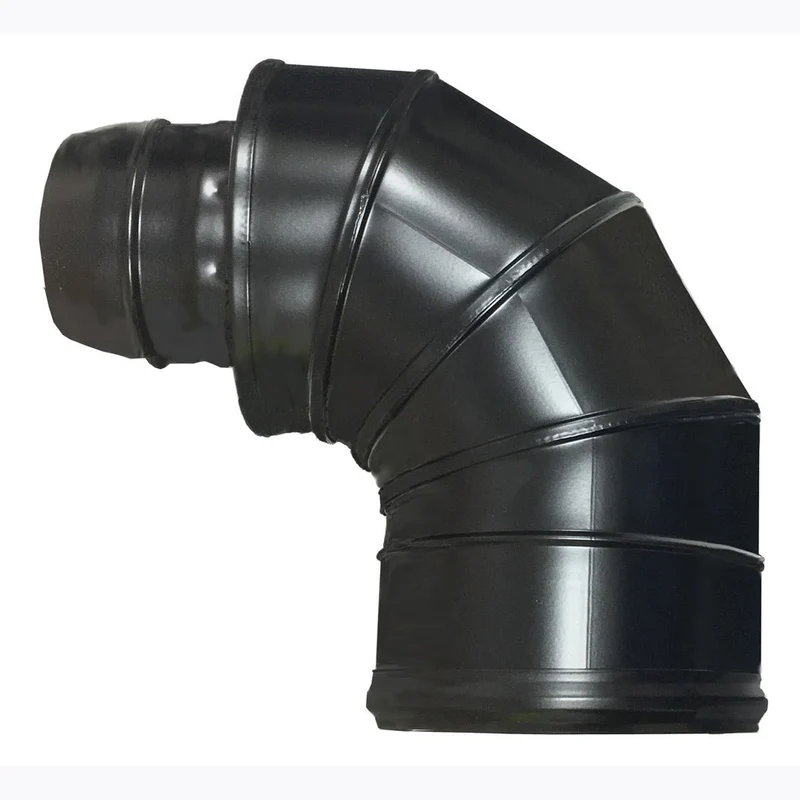

Grant High Level 90 Degree Terminal 12-26 kW Black Green

Grant High Level 90 Degree Terminal 12-26kW Black Green

The Grant High Level 90 Degree Terminal 12-26kW Black Green is designed for use with compatible Grant oil-fired boiler flue systems. As part of the Grant Green System, this terminal provides a practical way to direct the flue gases through a high-level installation while offering greater flexibility when space or positioning is restricted. Designed for boilers with outputs of 12-26kW, the terminal features a 90-degree bend that can make it easier to route the flue around building features and suit different installation layouts. Its high-level configuration also positions the terminal away from ground-level obstructions, helping to reduce the risk of interference from debris or snow.

Flexible High-Level Flue Installation

The 90-degree design provides additional flexibility when configuring a compatible external flue system. It can be particularly useful where a straightforward vertical or linear flue route is not suitable, allowing the flue direction to be changed to better suit the property. As a Green System flue component, it is designed to work as part of a compatible Grant external flue arrangement. Professional installation should be carried out in accordance with the manufacturer's instructions and applicable regulations.

Durable and Practical Design

The terminal has a black finish and is designed for external installation. Its compact dimensions make it a practical choice for a variety of building configurations, while the accessible design helps make routine inspection and cleaning more straightforward. The terminal has a 100mm diameter, with dimensions of approximately 140mm wide, 250mm high and 260mm deep.

Product Specifications

• Product type: Flue component
• Sub-type: Flue bend
• Fuel type: Oil
• Grant Green System
• Suitable for 12-26kW applications
• 90-degree terminal design
• Diameter: 100mm
• Width: 140mm
• Height: 250mm
• Depth: 260mm
• Colour: Black
• Warranty: 1 year
• EAN: 5060090371157
• MPN: GTH90B
• Product code: 107625

Key Features and Benefits

• Designed for compatible Grant oil-fired boilers
• Suitable for 12-26kW boiler outputs
• Part of the Grant Green System
• 90-degree bend provides greater flue routing flexibility
• Suitable for high-level external installations
• Helps accommodate installations where space is restricted
• 100mm flue diameter
• Black finish for a discreet external appearance
• Designed for straightforward inspection and maintenance
• Suitable for compatible traditional and modern heating installations

Frequently Asked Questions

What boiler outputs is the Grant High Level 90 Degree Terminal suitable for?

The terminal is designed for compatible Grant oil-fired boilers with outputs between 12kW and 26kW.

What is the purpose of the 90-degree design?

The 90-degree bend allows the direction of the flue to be changed, providing greater flexibility when routing the flue around building features or working within restricted installation spaces.

What is the diameter of the Grant Green System terminal?

The terminal has a 100mm diameter and is designed as a compatible component for the Grant Green System external high-level flue arrangement.
